1. Specification of aluminium foil:
1) Alloy: 8011,8006,1235 and etc.,
2) Temper: HO and etc.,
3) Thickness: 0.008-0.2mm
4) Width: 200 - 1850mm
5) I. D.: 76mm,152mm
6) Normal single coil weight: 80-100kg
7) Pin hole:according to GB/T3198-2010 ;
8) Other sizes and specifications are available according to customer's request

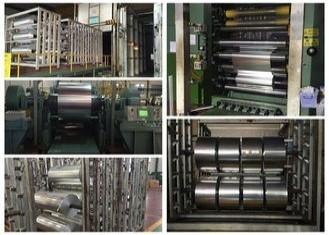

2. Production line of Aluminum Foil:
Through the years, we have built many modern production lines, including one 1+2 hot rolling production line, six 2, 450, 2, 050, 1, 650 and 1, 450mm cold rolling lines, two 1, 650mm foil rolling production lines, two 1, 850mm continuous rolling production lines and one roll coating production line.4*2000 foil rolling aluminum equipment is one of the most important facility in foil rolling production line, equiped by automobile control system made by UK VAI company and thickness measurement tool made in US Honeywell company. Detailed specifications as following:
1) Rolling machine type: Four roller irrevisble full hydraulic mill
2) Roller size:Φ260/Φ240/Φ800*2000mm
3) The highest rolling speed: 1200m/min
4) The strongest rolling strength:6000KN
3. Description of our production
Our chemical composition:
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Cr | Ti | code |
| 8011 | 0.5-0.9 | 0.6-1.0 | 0.1 | 0.2 | 0.05 | 0.1 | 0.05 | 0.08 | 1 |
| 1235 | Si+Fe:0.65 | 0.05 | 0.05 | 0.05 | － | － | 0.06 | 2 |
| 8006 | 0.4 | 1.2-2.0 | 0.3 | 0.3-1.0 | 0.1 | 0.1 | － | － | 3 |
Our mechanical property:
| Alloy Code | temper | Tensile Strength Rm(MPa) | Yield Strength Rp0.2(Mpa) | Extend Ratio A50(%) |
| 8011 | O | 60-100 | ≥45 | ≥4 |
| 8006 | O | 80-140 | ≥55 | ≥2 |
| 1235 | O | 60-100 | ≥45 | ≥3 |
4. Our advantage
1. Since 2004, we have rich experience in this industry in China;
2. Good reputation in household foil areas;
3. We start our productions from aluminum ingot,so we can control the quality as well;
4. We have our own development department for new material research;
5. Good experience and cooperation with big client in the world;
6. With Certificate ISO9001-2008;
7. High performance cost ratio;
8. Fast delivery time;
9. Good communication skills, and good service and understandings for customers;.
